Advantages
| +Easy to Install/Maintain |
| +Monitors Visibility |
| +Measures Liquid & Frozen Precipitation Rate |
| +Optically Detects Precipitation Type |
| +Wide Dynamic Range (measures from .1 to 3000 mm/hr) |
| +Operates Unattended 24 hours a day, 7 days a week |
| +Links directly to PC; Simple ASCII Data Format |
Description

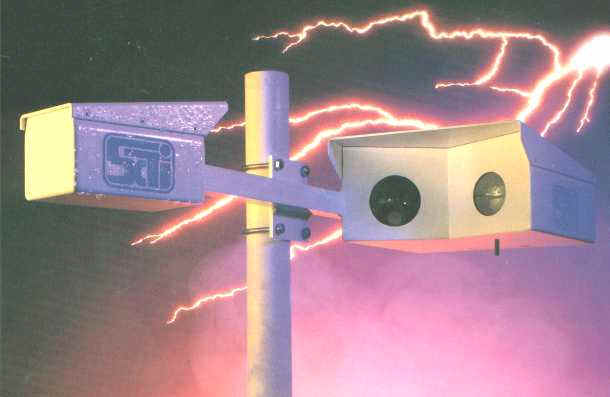

ScTi's WIVIS® sensor provides present weather and visibility readings into a very effective combination. This product is our premier road weather instrument. The WIVIS® is widely used by state DOT's across the US and other transportation authorities throughout the world such Japan Highway.
Patented ScTi technology uses adaptive environmental algorithms to optimize sensor performance in all weather conditions. ScTi has added several new features including WMO codes, past data storage, automated calibration, and optional hail & ice pellet detection to further enhance sensor performance. WIVIS® analyzes multiple channels of data to calculate the present weather and visibility. This approach recognizes that weather sensing requires a dynamic measurement, continually adapting to the environment at the moment. A new self-compensating algorithm makes field calibration unnecessary for up to 2 years.
WIVIS® reports precipitation occurrence, precipitation type, precipitation intensity, precipitation accumulation, in a variety of weather codes (NWS / WMO) and units of measure (English / SI) as well as visibility. The WIVIS® is perfect for general weather observation, transportation information, and other similar applications. It is arguably our most successful commercial grade weather instrument.
| Ordering Information |
| Specify OWI-130-xR where "x"= |
| »A for 110 VAC |
| »B for 230/240 VAC |
| »C for 100 VAC |
| »D for 12 VDC |
| »E for 220 VAC |
| Options |
| -QCS-130 QwikCollect Software for WIVIS® |
| -TST-130 Field Test Kit for WIVIS® |
| -HIP-100 Hail & Ice Pellet Sensor for WIVIS® |
| -Longer Ranges Available for Visibility |
Contact factory for special options such as relay outputs, limited distance modems, etc.
|
Performance Specifications |
|
| Rain Dynamic Range | 0.1 to 3000 mm/hr |
| Snow Dynamic Range | 0.05 to 1000 mm/hr (water equivalent) |
| Visibility Range | 0.001 to 1 mile (3km) |
|
Electrical Specifications |
|
| Power Requirements | Factory selectable, 100/115/220/230 VAC, 50/60 Hz @ 80 VA - 12 VDC optional, 20 VA nominal |
| Signal Output | RS-232 ASCII |
|
Environmental Specifications |
|
| Temperature Range | -40 to 50 C |
| Humidity Range | 0-100% |
| Precipitation/Dust | NEMA-4 type protection |
|
Physical Specifications |
|
| Head Size | 737 x 102 x 254 mm (29 x 4 x 10 in.) |
| Enclosure Size | 457 x 305 x 230 mm (18 x 12 x 9 in.) |
| Head Weight | 4.5 kg (10 lbs.) |
| Enclosure Size | 11 kg (24.2 lbs.) |
| Head & Enclosure Cable Length | 5 m (16.4 ft.) |
| Present Weather Codes | More than 50 NWS and WMO codes |
