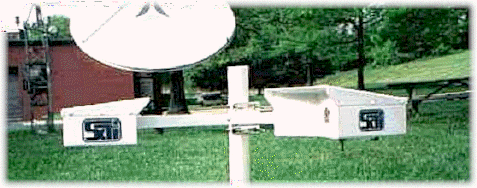

The Optical Precipitation Sensor (Model ORG-815): Even Better Than Before


Advantages

+Easy to Install/Maintain
+Measures Liquid Frozen Precipitation Rate
+High Sensitivity
+Wide Dynamic Range (measures from .1 to 500 mm/hr)
+Operates unattended 24 hours a day, 7 days a week
+Not Affected by Fog, Debris, Dust
+Links directly to PC (digital version)

Description

ScTi offers the clear advantage in precipitation measurement. ScTi optical precipitation sensors are the only sensors on the market today that measure true rain rate and snow intensity. Sensor performance is continually optimized through the use of adaptive environmental algorithms. Using patented scintillation technology, no other precipitation gauge comes close the ORG's performance and features.

The ORG-815 features "all-weather" performance, measuring snow intensity as well as rain rate. Lens heaters are provided to clear the optics of frost and ice and a thermistor probe helps the microprocessor discriminate between rain and snow (digital version). Advanced algorithms calculate the precipitation type in both NWS and WMO Code formats, rate (mm/hr), and water equivalent accumulation (mm).

Other features of the ORG-815 include 1) an innovative diagnostic algorithm that automatically identifies errors to insure data quality, 2) a control line to drive an external relay for snow detection, and 3) a simple RS-232 interface compatible with commercially available software and computers.

The ORG-815 replaces our old model, the ORG-715, ScTi’s Optical Precipitation Sensor. With its new look, the ORG-815 uses the same proven technology with some noticeable improvements: 1) Lighter frame, 2) More rugged design, and 3) U-bolt configuration makes the ORG® easier to install—no mounting pole needed. The truth is that our Optical Precipitation Sensor is "Better Than Before!"

Ordering Information
Specify ORG-815-Dx where "x"=
»R for RS-232 Output-Digital (Standard Version)
»A for Analog Output (Low Powered Version)
»C for RS-485 Output w/Addressable ID for Multidrop System

»RM for RS-232 Output w/Memory Module
Options
-QCS-815 QwikCollect Software for ORG
-TST-800 Field Test Kit for ORG
-PSB-815-XX Electrical Box

-0.5 to 2000 mm/hr Calibration (Special)

Contact factory for special options such as relay outputs, limited distance modems, etc.

SPECIFICATIONS

Performance Specification

Digital Output (-DR,-DC, -DRM)

Analog Output (-DA)
Rain Dynamic Range 0.1 to 500 mm/hr 0.1 to 500 mm/hr
Rain Accumulation 0.001 to 999.999 mm 0.001 to 999.999 mm/hr
Snow Dynamic Range .01 to 50 mm/hr water eq. N/A

Electrical Specification

Digital Output

Analog Output
Supply voltage

-DR

-DC

-DRM

-DA
Current Drain

(Current drain depends on ambient temperature)

 500-800 ma 500-800 ma 500-800 ma 30 ma w/o heaters,

400-600 ma w/ heaters
Signal Output RS-232

RS-485

RS-232

0-5 VDC
Relay Control Output

(CTRL1 pulled to ground under control of firmware)

 Yes

Yes

Yes

N/A
User Heater Control N/A

N/A

N/A

Yes
Environmental Specification
Temperature -40 to 50 degrees C (-40 to 122 degrees F)
Humidity 0-100%
Precipitation/Dust NEMA-4 type protection
Physical Specification
Size 730 x 115 x 264 mm (28.7 x 4.5 x 10.4 in.)
Weight 3 kg w/o cables (6.6 lbs.)
Cable Length 15 meter (49.2 ft.)
