Mini-ORG® (Model ORG-115): Specialized Optical Rain Gauge Made Exclusively for Buoys

Advantages

+Measures Liquid & Frozen Precipitation Rate
+Low Maintenance
+Compact Size Perfect for Buoy Observation
+Wide Dynamic Range (measures from .1 to 500 mm/hr)
+Operates Unattended 24 hours a day, 7 days a week
+Not Affected by Fog, Debris, Dust

Description

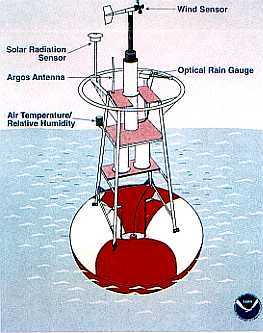

While the ORG-815 is our true, all-purpose precipitation sensor, the Mini-ORG or ORG-115 is a very specialized device offered exclusively for buoy applications. The sensor’s small size and weight are perfect for ocean going or freshwater buoy weather stations.

Unlike other rain gauges, which measure accumulation, the ORG-115 measures true rain rate. The ORG-115 is an ideal sensor for the measurement of rain, from very light (0.1 mm/hr) up to torrential downpours (500 mm/hr). The high sensitivity ensures that the ORG® will provide useful data well in advance of a tipping bucket gauge that is waiting for the "first tip". The wide dynamic range will measure rain rate when all other types of rain gauges have completely failed. In addition, since the Mini-ORG® measures precipitation rate optically instead of mechanically, wind effects, and motion due to rough seas have much less effect on the Mini-ORG®.

The ORG-115 has been used extensively in this capacity and has been of significant use in the study of El Niño in the South Pacific. The National Data Buoy Center (NOAA), NASA, Mitsubishi, Brookhaven National Labs, and many other scientific and research institutions have purchased the ORG-115 for this task.

The standard model ORG-115 outputs a 0-5 VDC signal that is compatible with most automatic weather stations and data loggers. A microprocessor-based, RS-232 output is also available as an option.

*Please note that the ORG-115 is only available for buoy applications. It is a special item. For all other uses, you should look to the ORG-815.

Ordering Information
Specify ORG-115-Dx where "x"=
»R for RS-232 Output-Digital
»A for Analog Output (Low Powered Version)
»C for RS-485 Output w/Addressable ID for Multidrop System
Options
-QCS-115 QwikCollect Software for ORG®
-TST-800 Field Test Kit for ORG®
-PSB-815-XX Electrical Box

-0.5 to 2000 mm/hr Calibration (Special)

Specifications

Performance Specification

Digital Output (-DR,-DC,)

Analog Output (-DA)

Rain Dynamic Range 0.1 to 500 mm/hr 0.1 to 500 mm/hr
Rain Accumulation 0.001 to 999.999 mm 0.001 to 999.999 mm/hr
Snow Dynamic Range .01 to 50 mm/hr water eq. N/A

Electrical Specs

Digital Output (-DR,-DC,)

Analog Output (-DA)
Power Requirements 11-16 VDC @ 65 ma (75 ma max) 11-16 VDC @ 25 ma (30 ma max)
Signal Output  RS-232-C ASCII, RS-485 ASCII 0-5 VDC

Environmental Specifications

Temperature Range 1 to 50 C (33 to 122 F)
Humidity Range 0-100% noncondensing
Precipitation/Dust NEMA-4 type protection

Physical Specifications

Size 506 x 138 x 168 mm (20 x  4.3 x 6.5 in.)
Weight 1.6 kg ( 3.5 lbs.)
Cable Length 15 m (50 ft.)
