Hail & Ice Pellet Sensor
(HIP-100): Accessory for Present Weather (OWI,
WIVIS or LEDWI)
Advantages
| +Easy to Install/Maintain |
| +Detect occurrence and intensity of hail & ice pellets (sleet) |
| +Expands weather discrimination capability of ScTi sensors |
| +Works with LEDWI®, WIVIS®, and OWI tm |
| + |
| +NWS and WMO codes |
| +Upgradeable for existing present weather sensors |

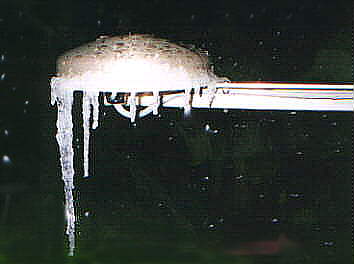

The Hail and Ice Pellet Sensor (HIPS tm) makes ScTi present weather sensors even more capable of discriminating present weather types. Beyond the basic capability of rain and snow discrimination, HIPS tm raises the standard for present weather sensors to new heights. The head of the sensor detects hail or ice pellet via acoustics.
HIPS is extremely easy to install and use. The sensor head/boom arm assembly is attached to the host sensor electronics box using the same hardware used to mount the electronics box.
The cable is plugged into a keyed connector on the bottom of the electronics box. That's it! The host present weather sensor is now ready to report a wide variety of present weather conditions, from rain to snow to sleet to hail to mixed precipitation.
| Ordering Information |
| Specify HIP-100 & the host present weather sensor part number (OWI-120, OWI-130, or OWI-220) |
|
Performance Specifications |
|
| Sensitivity | Within 5 min. when ice/hail particles > 1 mm diameter |
| Method | Acoustic |
|
Power Specifications |
|
|
Power |
115 VAC @ 300 VA |
|
Control |
Thermostat |
|
Environmental Specification |
|
| Temperature | -40 to 50º C (-40 to 122º F) |
| Humidity | 0-100% |
| Precipitation/Dust | NEMA-4X type protection |
| Physical Specification | |
| Size | 865 x 90 x 216 mm (28.7 x 4.5 x 10.4 in.) |
| Weight | 2.3 kg w/o cables (5.1 lbs.) |
| Cable Length | 15 meter (49.2 ft.) |
